2 x Cat 5 e + 2 RG6/U Quad + 2 FDD/Fiber Overall Jacket CMR/CL2R-OFNR

$1.00

Applications

Home Entertainment, Home Structured Cabling, Residential Voice, Video & Data Cabling, TIA 570-1 Residential Standard

Features & Benefits
  • Install Friendly
  • A rip cord underneath the jacket provides for easy removal at installation
  • Minimize the number of cable pulls, reduce installation cost and shorten the time required for the pre-wiring of residential systems
  • All cables are tested physically & electrically in accordance with NEC standards
  • Sunlight Resistant & RoHS Compliant
  • Legend markings for zones and rooms to save installation time
  • E-Z footage marking with ascending and descending order
  • Free from restricted metals and hazardous compounds. Check our green leaf label for more information
  • Combines indoor/outdoor applications into one product. Complies with the UL 1581 sunlight resistance requirement for outdoor installations. (Do not use as a substitute for OSP Cables)
Package Dimensions (inches) 500 FT Spool

Length: 22.44
Width: 17.32
Height: 13.78

Print Friendly, PDF & Email

Description

Physical Characteristics

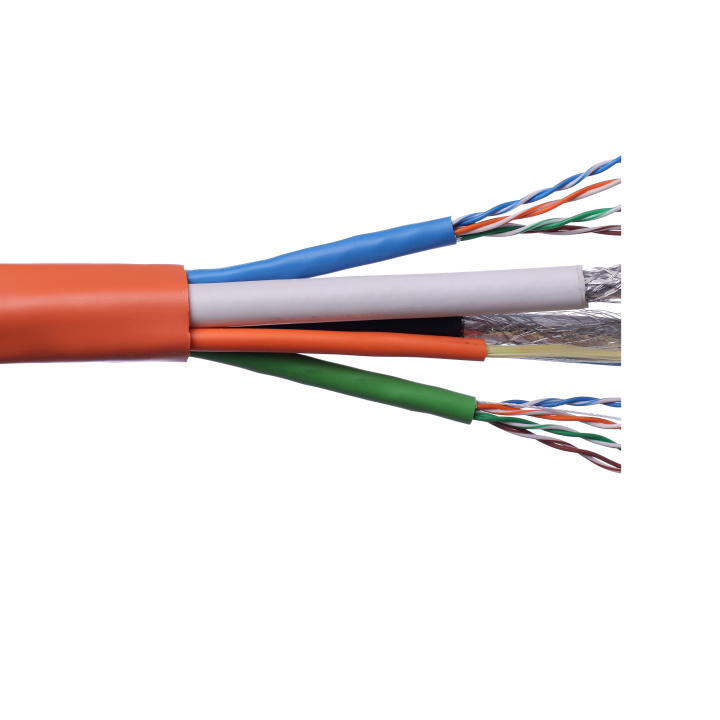

  • Core: 2 Cat5e + 2 RG 6 Quad + 2 Fiber (2 x 5A244-E-350 + 2 x 754-6040 + 2 x FDD/FIBER)
  • Inner Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant)
  • Color Code:
    • Cat5e: Blue & Gray
    • RG6 Quad: Black & White
    • Fiber: Orange
  • Cat 5e Diameter Nominal (in): 0.200
  • RG6 /U Quad Diameter Nominal (in): 0.296
  • Multimode Fiber: (Two 62.5/125 MMF surrounded by Kevlar under PVC Jacket)
  • Fiber Diameter Nominal (in): 0.170
  • Separator: Clear Mylar Tape
  • Rip Cord: Applied longitudinally under jacket
  • Outer Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant)
  • Nominal Cable Diameter (in): 0.680
  • Nominal Cable Net Weight (lbs/1000 ft): 89.94
  • Minimum Bend Radius (in): 1.0
  • Maximum Pulling Force (lbs): 25
  • Temperature Rating (°F):
    Installation: +32 to +140
    Storage & Operation: -4 to +140
Standard Compliances
  • NEC: 725 & 800
  • UL Standard: UL 13 & UL 444
  • Flame Rating: UL 1666 Riser, c(UL) FT4
  • RoHS: Compliant Directive 2011/65/EU
Electrical Characteristics
  • Operating Voltage: 300 Volts Max
  • Cat 5e Capacitance: 5.6 nF/100ft Nom
  • Cat 5e Impedance: 100 Ohms Nom
  • Cat 5e Max. DC Resistance: 29.0 Ohms/M’ @ +68°F
  • Cat 5e Capacitance Unbalance: 50 pF/328ft
  • Cat 5e Velocity of Propagation: 69%
  • Cat 5e Propagation Delay: 515 ns/328ft
  • Cat 5e Delay Skew: 15 ns/328ft
  • RG6/U Quad Capacitance: 16.5 pF/ft Nom
  • RG6/U Quad Impedance: 75 Ohms Nom
  • RG6/U Quad Max. DC Resistance: 32.0 Ohms/M’ @ +68 °F
  • RG6/U Quad Velocity of Propagation: 81%
  • RG6/U Quad Max. DC Resistance: 32.0 Ohms/M’ @ +68 °F
  • RG6/U Quad Velocity of Propagation: 81%
Certifications

Verified

*All values in this specification are nominal and are subject to tolerances of +/- 10%.
Specifications are subject to change without notice*
