SKU: 5A244-E-350 Category: Tags: , , , ,

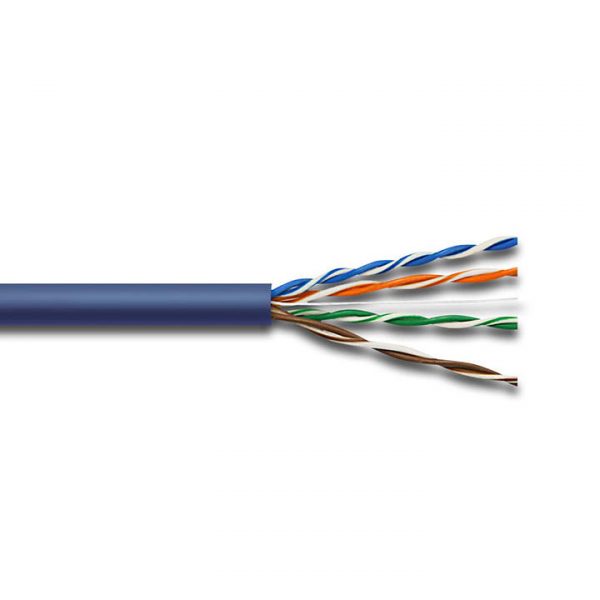

24 AWG 4 Pair Cat 5E 350 MHz CMR

$1.00

Applications

IEEE 802.3: 1000 BASE-T Gigabit Ethernet, 100 BASE-TX, 10 BASE-T, 155 Mb/s and 622 Mb/s ATM, ANSI X3.263: 100 Mb/s, Broadband and Baseband Analog Video and transport of High Definition 1920x1080p and Ultra High Definition 4K/2k signals when used in conjunction with an HDMI or HD BASE-T extender between a source and a display

Features & Benefits
  • Cable is flexible and easy to install
  • For applications that require Optimum Cat 5E Performance with flexibility for the future
  • Third-party verified for guaranteed performance and RoHS compliance
  • Free from restricted metals and hazardous compounds. Check our green leaf label for more information
  • Combines indoor/outdoor applications into one product. Complies with the UL 1581 sunlight resistance requirement for outdoor installations. (Do not use as a substitute for OSP Cables)
Package Dimensions (inches) 1000 FT Pull Box

Length: 14.17
Width: 10.04
Height: 13.19

Print Friendly, PDF & Email

Description

Physical Characteristics
    • Conductor: 24 AWG Solid Bare Annealed Copper
    • Insulation: Premium Polyolefin
    • Conductor Color Code:
      Pair 1: Blue – White/Blue
      Pair 2: Orange – White/Orange
      Pair 3: Green – White/Green
      Pair 4: Brown – White/Brown



    • Rip Cord: Applied longitudinally under jacket
    • Jacket: PVC (Flame-Retardant, SUN RES & RoHS compliant)
    • Nominal Cable Diameter (in): 0.200
    • Nominal Cable Net Weight (lbs/1000 ft): 19.4
    • Minimum Bend Radius (in): 3.0
    • Maximum Pulling Force (lbs): 25
    • Temperature Rating (°F):
      Installation: +32 to + 140
      Storage & Operation: -4 to + 167



Standard Compliances
  • ANSI/ TIA 568-C.2
  • ANSI/TIA 862 (Building Automation)
  • ISO/IEC 11801 Ed. 2.0 (Class D)
  • ICEA S-90-661 (Category 5e)
  • NEC/CEC Type CMR (UL 1666) for Riser
  • UL 444
  • RoHS Compliant Directive 2011/65/EU
Electrical Characteristics
  • Max Capacitance (nF/100m @ 1 kHz): 5.6
  • Max DC Resistance (Ω/100m @ 68℉): 9.38
  • Max Delay Skew (ns/100m): 45
  • Nom Velocity of Propagation (%): 70
  • Characteristic Impedance (Ω@ 1- 100 MHZ): 100±15
Certifications

Verified

*All values in this specification are nominal and are subject to tolerances of +/- 10%.
Specifications are subject to change without notice*
