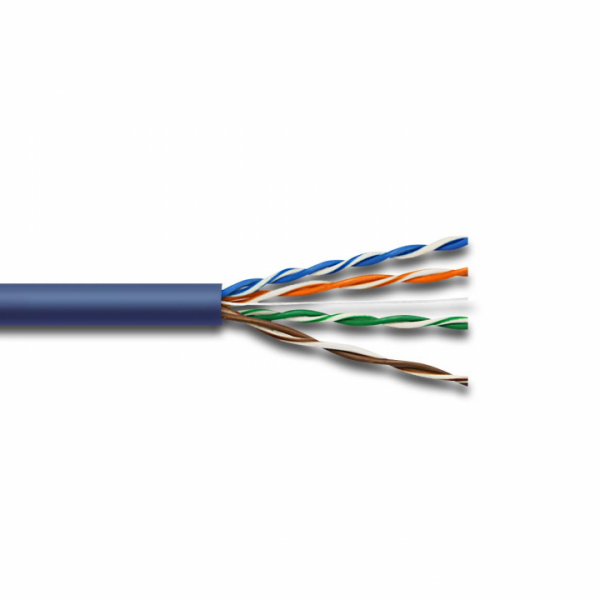

24 AWG 4 Pair Cat 5E Stranded 350 MHz
$1.00
Applications
IEEE 802.3: 1000 BASE-T Gigabit Ethernet, 100 BASE-TX, 10 BASE-T, 155 Mb/s and 622 Mb/s ATM, ANSI X3.263: 100 Mb/s, Broadband and Baseband Analog Video and transport of High Definition 1920x1080p and Ultra High Definition 4K/2k signals when used in conjunction with an HDMI or HD BASE-T extender between a source and a display
Features & Benefits
- Cable is flexible and easy to install
- For applications that require Optimum Cat 5e Performance with flexibility for the future
- Third-party verified for guaranteed performance and RoHS compliance
- Free from restricted metals and hazardous compounds. Check our green leaf label for more information
Description
Physical Characteristics
- Conductor: 24 AWG Stranded Copper
- Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant)
- Conductor Color Code:
Pair 1: Blue – White/Blue
Pair 2: Orange – White/Orange
Pair 3: Green – White/Green
Pair 4: Brown – White/Brown
- Rip Cord: Applied longitudinally under jacket
- Jacket: PVC (Flame Retardant & RoHS compliant)
- Nominal Cable Diameter (in): 0.200
- Nominal Cable Net Weight (lbs/1000 ft): 20
- Minimum Bend Radius (in): 3.0
- Maximum Pulling Force (lbs): 18
- Temperature Rating (°F):
Installation: +32 to + 140
Storage & Operation: -4 to + 167
Standard Compliances
- ANSI/ TIA 568-C.2
- ANSI/TIA 862 (Building Automation)
- ISO/ IEC 11801 Ed. 2.0 (Class D)
- ICEA S-90-661 (Category 5e)
- NEC/ CEC Type CMR (UL 1666) for Riser
- UL 444
- RoHS Compliant Directive 2011/65/EU
Electrical Characteristics
- Max Capacitance (nF/100m @ 1 kHz): 5.6
- Max DC Resistance (Ω/100m @ 68℉): 11.0
- Max Delay Skew (ns/100m): 45
- Nom Velocity of Propagation (%): 70
- Characteristic Impedance (Ω@ 1- 100 MHZ): 100±15
Certifications
*All values in this specification are nominal and are subject to tolerances of +/- 10%.
Specifications are subject to change without notice*
