Description
Physical Characteristics

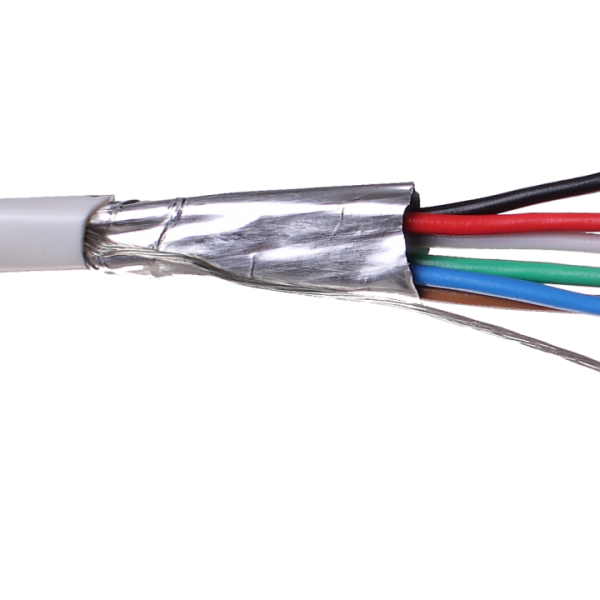

- Conductor: Stranded Bare Copper
- Number of Conductors: 6
- Size: 18 AWG
- Strand Count: 19/30 AWG Stranded
- Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant)
- Conductor Color Code: 1. Black 2. Red 3. White 4. Green 5. Brown 6. Blue
- Overall Shield: Aluminum/Polyester coverage 100% (Aluminum Side Contact Drain Wire)
- Drain wire: 7/32 AWG Stranded Tinned Copper
- Rip Cord: Applied longitudinally under jacket
- Jacket: PVC (Flame-Retardant & RoHS Compliant)
- Nominal Cable Diameter (in): 0.213
- Nominal Cable Net Weight (lbs/1000ft): 55
- Minimum Bend Radius (in): 1.0
- Maximum Pulling Force (lbs): 25
- Temperature Rating (°F)
Installation: +32 to +140
Storage & Operation: -4 to +167
ISO9001: 2008, ISO14001: 2004
Standard Compliances
- NEC: 725 & 800
- UL Standard: UL 13 & UL 444
- Flame Rating: UL 1666 Riser, c(UL) FT4
- RoHS: Compliant Directive 2011/65/EU
Electrical Characteristics
- Operating Voltage: 300 Volts Max
- Capacitance: 35 pF/ft Nom
- Impedance: 43 Ohms Nom
- DC Resistance: 6.5 Ohms/M’ @ +68 °F
