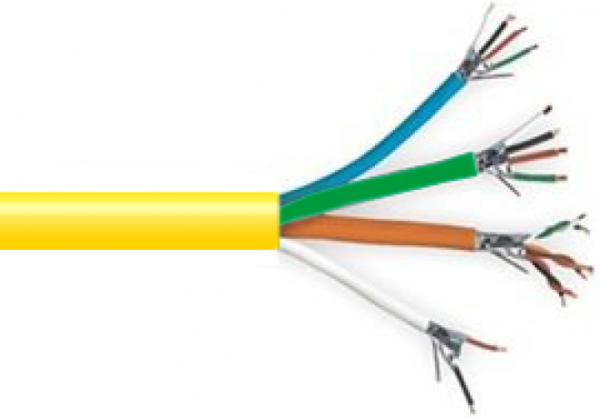

18/4C STR OAS + 22/3PR STR OAS + 22/2C STR OAS + 22/4C STR OAS CMP

18/4C STR OAS + 22/3PR STR OAS + 22/2C STR OAS + 22/4C STR OAS CMP

Applications

9898app

Features & Benefits

  • Install Friendly
  • A rip cord underneath the jacket provides for easy removal at installation
  • Tested physically & electrically in accordance with NEC standards
  • Legend markings for zones and rooms to save installation time
  • E-Z footage marking with ascending and descending order
  • RoHS Compliant
  • Free from restricted metals and hazardous compounds. Check our green leaf label for more information
Package Dimensions 500FT

Length: 21.65″
Width: 7.87″
Height: 9.84″

SKU: 777-9898 Category: Tags: , , , , ,
Physical Characteristics

9898phys1

  • Overall Lay Length: 5.0”
  • Insulation: Plenum Polyolefin (Low-Smoke, Flame-Retardant & RoHS Compliant)
  • Rip Cord: Applied longitudinally under jacket
  • Jacket: PVC (Low-Smoke, Flame-Retardant & RoHS Compliant)
  • Nominal Cable Diameter (in): 0.445
  • Nominal Cable Net Weight (lbs/1000 ft): 127.42
  • Minimum Bend Radius (in): 3.0
  • Maximum Pulling Force (lbs): 35
  • Temperature Rating (°F):
    Installation: +32 to +140
    Storage & Operation: -4 to +167
Standard Compliances
  • NEC: 725 & 800
  • UL Standard: UL 13 & UL 444
  • Flame Rating: UL 910 Plenum, c(UL) FT6
  • RoHS: Compliant Directive 2011/65/EU
Electrical Characteristics
  • Operating Voltage: 300 Volts Max
  • Capacitance: 31.9 pf/ft nom. (18 AWG), 36.2 pf/ft nom.  (22 AWG)
  • Impedance: 42 Ohms nom. (18 AWG), 53 Ohms nom. (22AWG)
  • DC Resistance: 6.5 Ohms/M’ (18 AWG), 16.5 Ohms/M’ (22AWG)
Certifications

Verified
